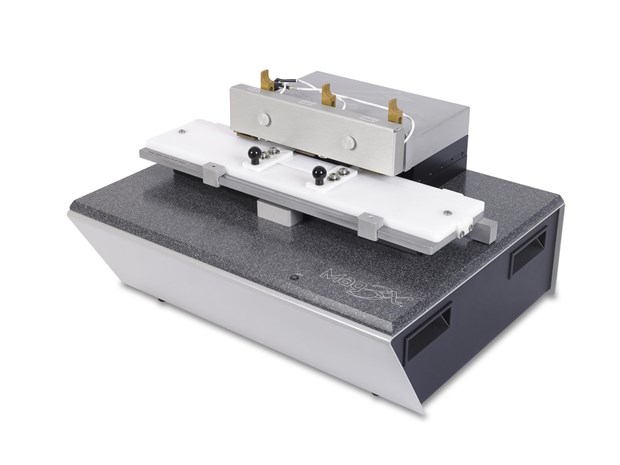

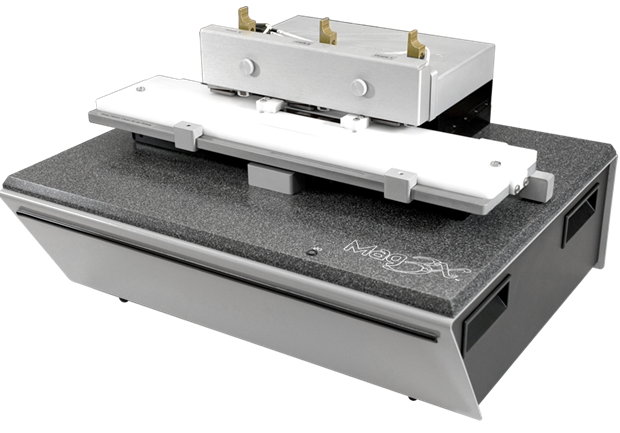

Mag3xp Read Only Magstripe Analyzer

Q-Card’s Mag3xp magnetic stripe analyzer is designed for desktop printer testing and has the ability to read all three card tracks with one pass! Superior technology in the Mag3xp ensures the lowest possible measurement variation in the market for testing magnetic stripes.The Mag3xp is ideal for card printing manufacturers and card manufacturers.

Features & Benefits

Features

Simple graphical displays for pass/fail analysis
User-replaceable “QuickChange” magnetic heads
Speed platen and basic mode for production use

Options

Custom Platens
JIS
Statistical Analysis

Benefits

Quick testing rates (3 tracks at once, 1 million samples per second, 16-bit resolution)
Ability to save data on each card for future analysis
Low cost of ownership
- No machine tear-downs or card jamming
- Low annual calibration costs
Easy-to-use reporting
Easy-to-learn software
Exceeds ISO requirements

Specifications

Operating Frequency: 50/60 Hz Rated
Voltage (max.): 250 VAC Operating
Voltages: 100, 120, 220/240 VAC
Communications Port: USB 2.0

Environmental Requirements

Operating temperature: 65º to 75ºF (18º to 24ºC)
Relative humidity: 40% to 60%

Size and Weight

Height: 10.5 inches (26.67 cm)
Width: 19 inches (48.26 mm)
Depth: 15 3/8 inches (39.05 cm)
Weight: 52 pounds (23.59 kg)

Ordering Details

Part #	Description
Mag3xp	Magstripe Analyzer for Desktop Printer Testing
QCA1005	Q-Start Sentinel Calibration Card
QCA1009	Q-Card Amplitude Calibration Card
906166	Mag3xp Calibration Certification: Factory Service
906116	Mag3xp: Calibration Certification: Do It Yourself Kit
N/A	ChartRunner Statistical Software: "LEAN VERSION"
JIS-I-RW	JIS R/W Option (Includes JIS Loco Write Head)
JIS-II-RO	JIS R/O Option
QCA1031	Mag3/3x Wear Test Kit

At a Glance

Category: Magnetic Stripe Testing

Capabilities:

Reads 3 tracks at once

Standards:

ISO 7811-2 table 1 ‘loco” stripe tests
ISO 7811-6 table 1 “hico” stripe tests
ISO/IEC 10373
